Safari Rear Bumper System

Safari Rear Bumper System

"Rugged and versatile." - "A revolutionary design!" - "Taking Suzuki Samurai's to an all new level."

That's what ZUK-N-OVATIONS customers are calling the new Safari Rear Bumper System for Suzuki Samurai's. After months and months of endless design and testing, we have finally unleashed the bumper system that will put all other rear bumpers on the market to shame!

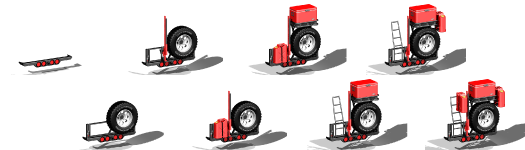

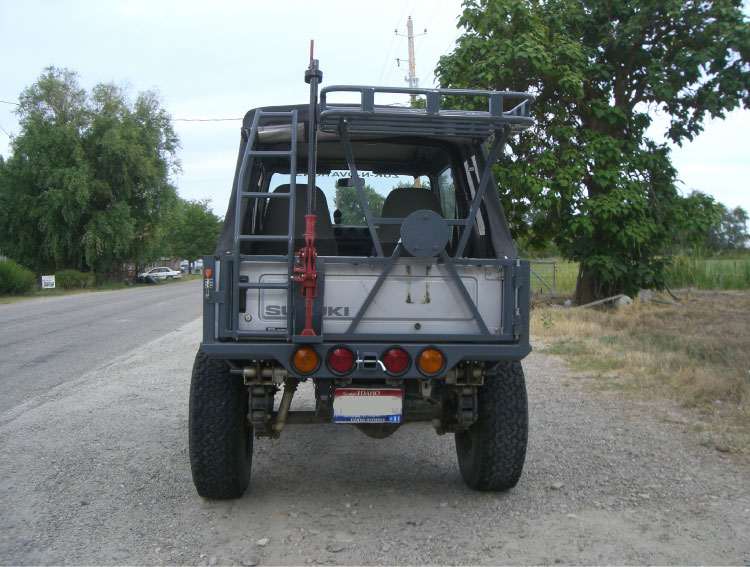

Sarari Rear Bumper System Arrangements

Customizable to your specific needs! (click to enlarge)

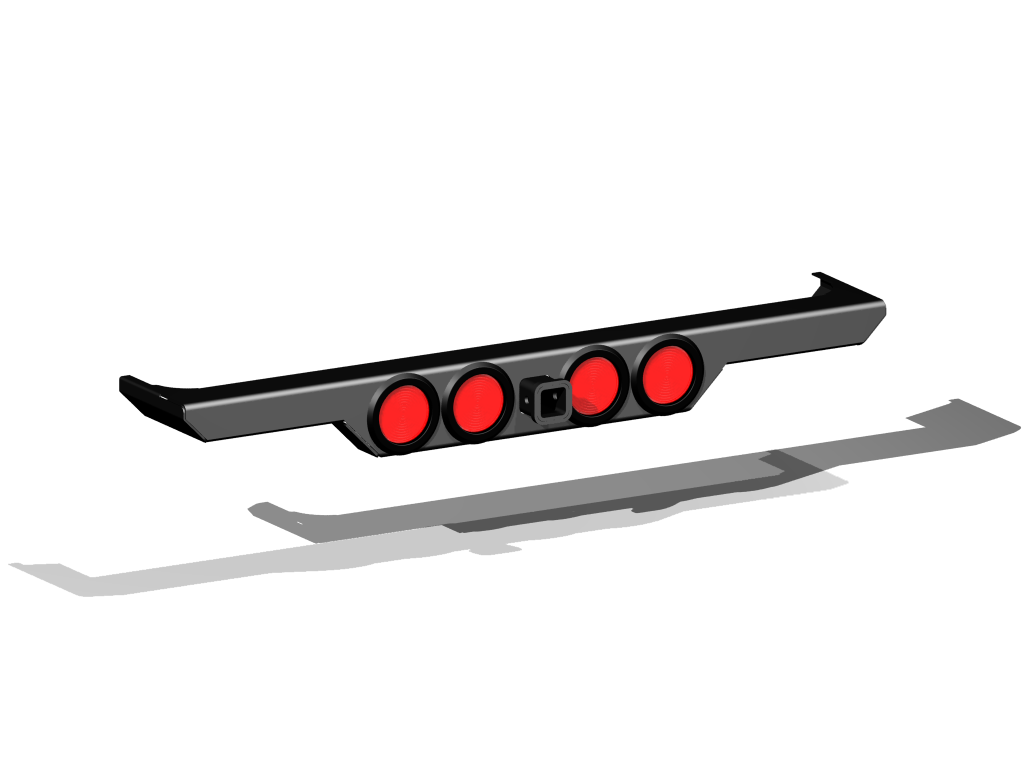

Safari Rear Bumper

Constructed of reinforced high strength steel and designed with innovation and a bold new attitude in mind, the Safari Rear Bumper for for Suzuki Samurai's is a masterpiece that will have people stopping you on the road and the trail.

ZNO Rear Bumper

Basic construction consists of a formed plasma cut 10 gauge body with 3/16" square tubing internal reinforcements. With the lights being larger than the competition's, our rear bumper still maintains an extremely high ground clearance to give you that extra edge on the trail. It wraps around each side of your Suzuki with high angle body protectors to help keep you Zuk's body protected and straight.

It comes with 4" LED lights that can be found at most any truck stop around the nation. Each light, red or amber, can be used as a stop/tail light or turn signal.

A 2" receiver hitch comes standard on all bumpers fully welded and structurally reinforced.

ZNO Rear Bumper

When it comes to mounting the Safari Rear Bumper to your Suzuki Samurai, you don't need to worry about having to do any welding or major fabrication. A lot of effort was put into designing a mounting system that took all the hassle out of it for the customer while providing the most strength and rigidity. By mounting to the frame in four solid locations and having one of the most structurally stout bumpers on the market, you can be reassured that this bumper will hold up to whatever you throw at it, while maintaining total rigidity.

- weight: 45 lbs. (not including corner posts)

ZK-0007 Samurai Safari Rear Bumper
*Includes Safari Rear Bumper, (2) 4" amber LED lights, (2) 4" red LED lights, 2" receiver hitch, and complete mounting hardware
*corner posts not included

Powder Coat Color

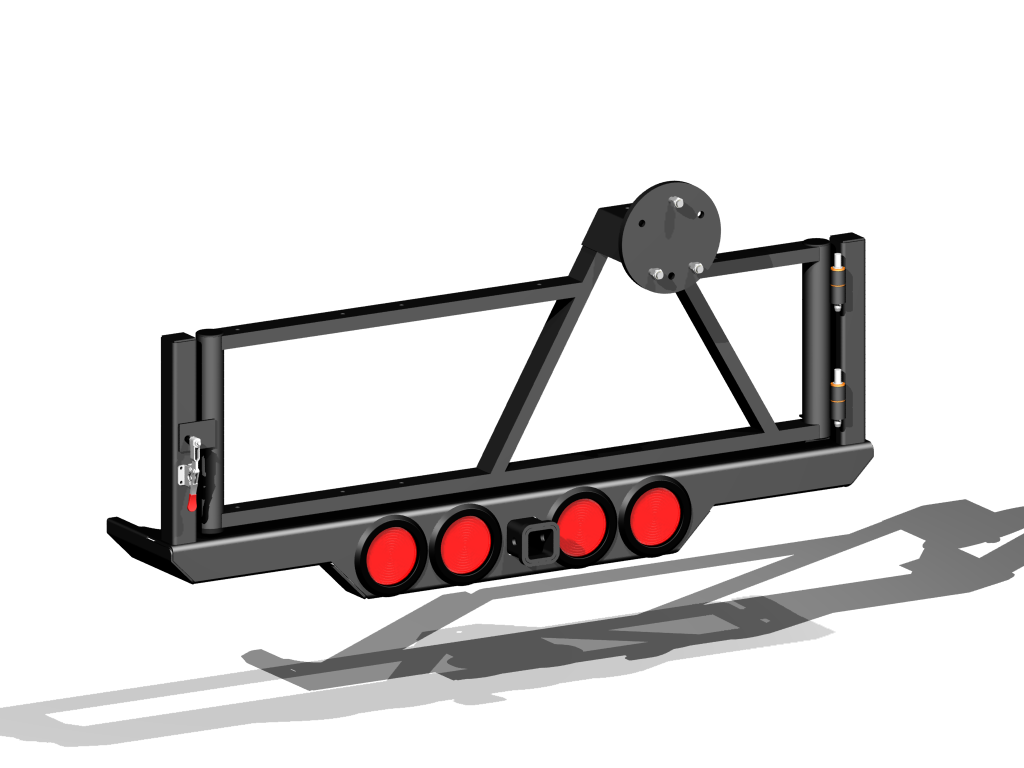

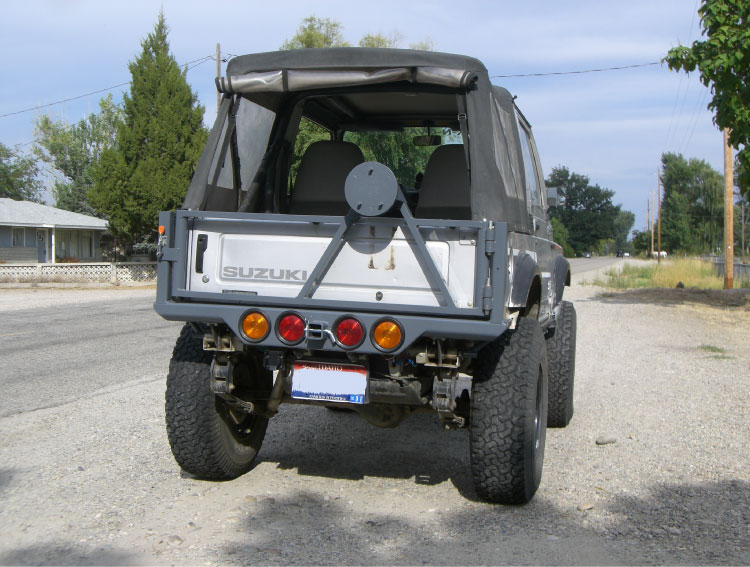

Safari Rear Bumper and Spare Tire Gate

When it comes to bold designs, our New! Spare Tire Gate for Suzuki Samurai's is one that will be rocking the Suzuki enthusiast community as well as all those wishing they would have bought a Suzuki instead of a conventional four-wheel drive.

ZNO Spare Tire Gate

The heart of the design lies in the permanent corner protectors welded and gusseted to the Safari Rear Bumper. Constructed of 2" square 1/4" wall tubing, they provide a structure that can support the spare tire gate as well as the rest of the Safari Rear Bumper System accessories. Here at ZNO, we know that anything can happen on the trail. That's why we made sure they would be rugged enough to give you that extra protection against damaging the rear body corners.

ZNO Spare Tire Gate

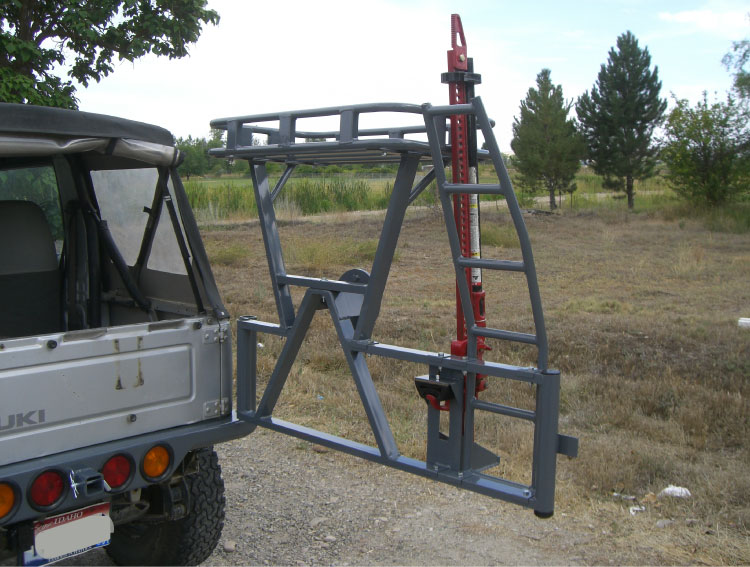

The gate pivots on two high strength 1/2" ball lock pins that ride inside pre oiled bronze bushings. These unique bushings are impregnated with roughly 18% SAE 30 oil to allow for a virtually maintenance free joint. There's no need to worry about ball bearings filling up with dirt and needing to be repacked with grease. After much research and testing, we came to the conclusion that there was no need to have a high performance bearing capable of spinning at 5000 rpm for a gate that opens 90 degrees. The use of simple ball lock pins allows you to easily remove the gate and store it away when you don't need it.

ZNO Spare Tire Gate

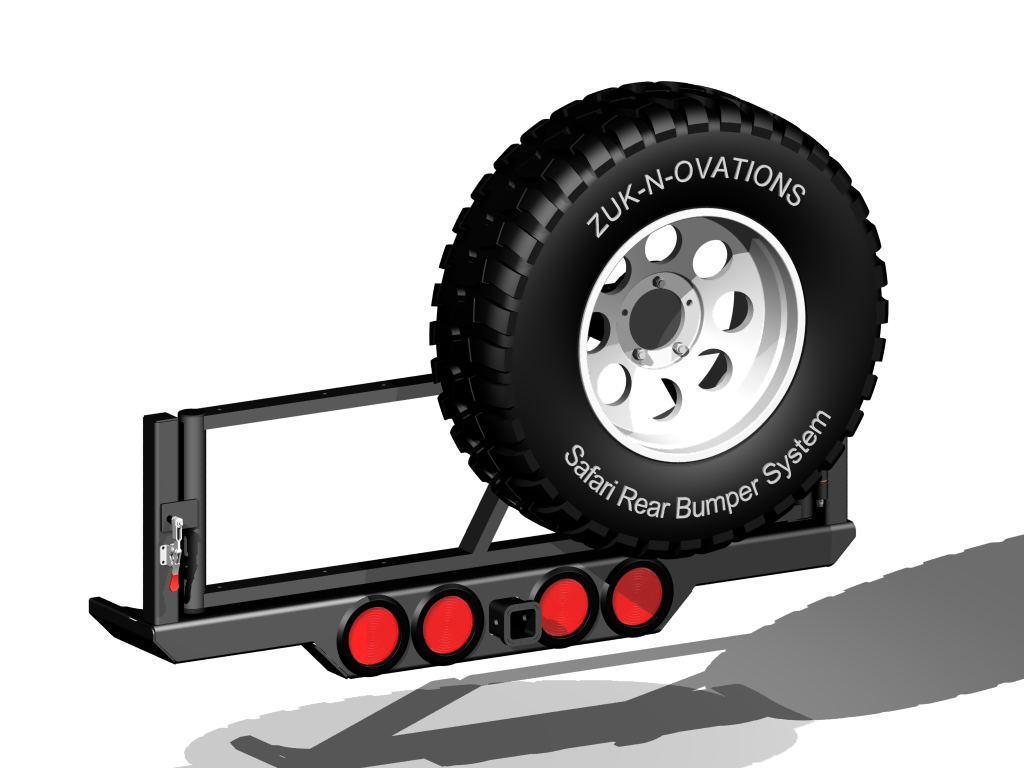

With the Safari Spare Tire Gate you can hold up to a 35" tire with 5" of total backspacing (wheel + tire bulge) on the rear bumper of your Suzuki Samurai. It is the prefect alternative for replacing the stock spare tire mount which is commonly known for cracking and breaking off your tailgate. It is predrilled to accommodate both the Suzuki 5 on 4.5" bolt pattern as well as the Toyota and Wagoneer D44 6 on 6.5" pattern. Standard wheel studs and lug nuts are provided and installed for your specified application. The gate can also be used as an alternative to your Samurai tailgate, allowing easy access and great airflow.

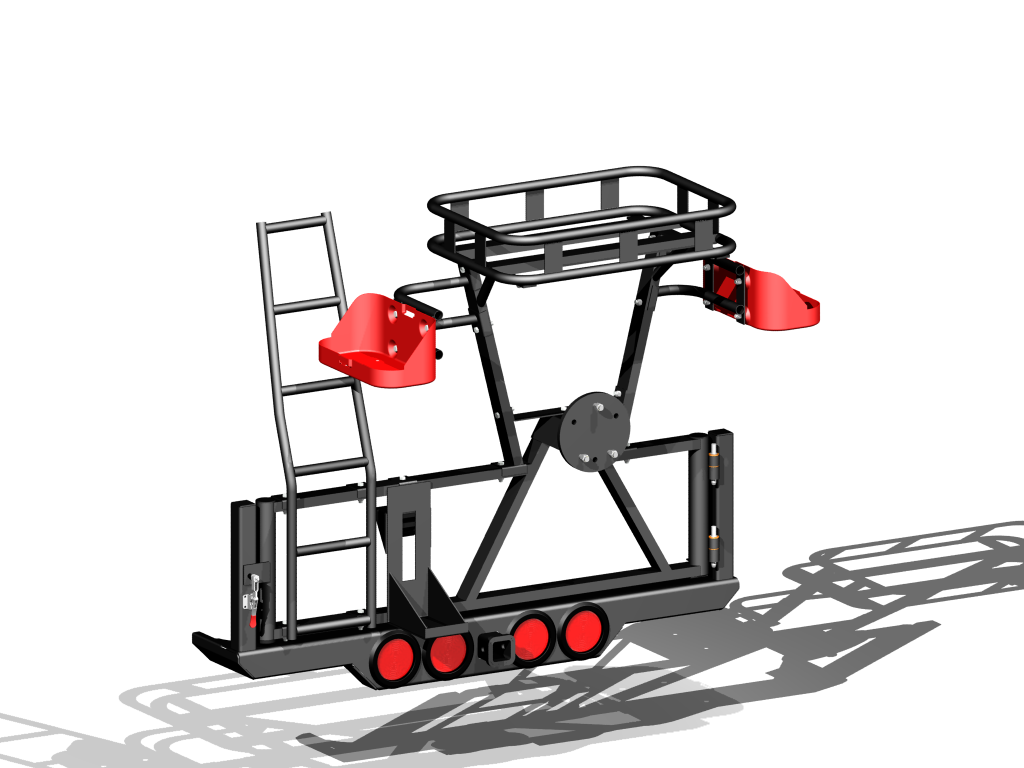

ZNO Safari Bumper System Accessories

One of the greatest parts about the Safari Spare Tire Gate is that it comes completely predrilled for all the current Safari Rear Bumper System accessories. You can piece your own bumper system together over time and never worry about having to pull out your hand drill to mount it yourself.

- weight: 85 lbs. (includes bumper and gate)

ZK-0008 Safari Rear Bumper & Spare Tire Gate
*includes Safari Rear Bumper, Safari Spare Tire Gate, (3) Suzuki Samurai wheel studs and lug nuts or (3) Toyota Truck wheel studs and lug nuts (specify), and complete mounting hardware

Powder Coat Color
Bolt Pattern

*If your call in your order, we can usually get the shipping cost down based on your exact address!

Bolt-On Safari Accessories

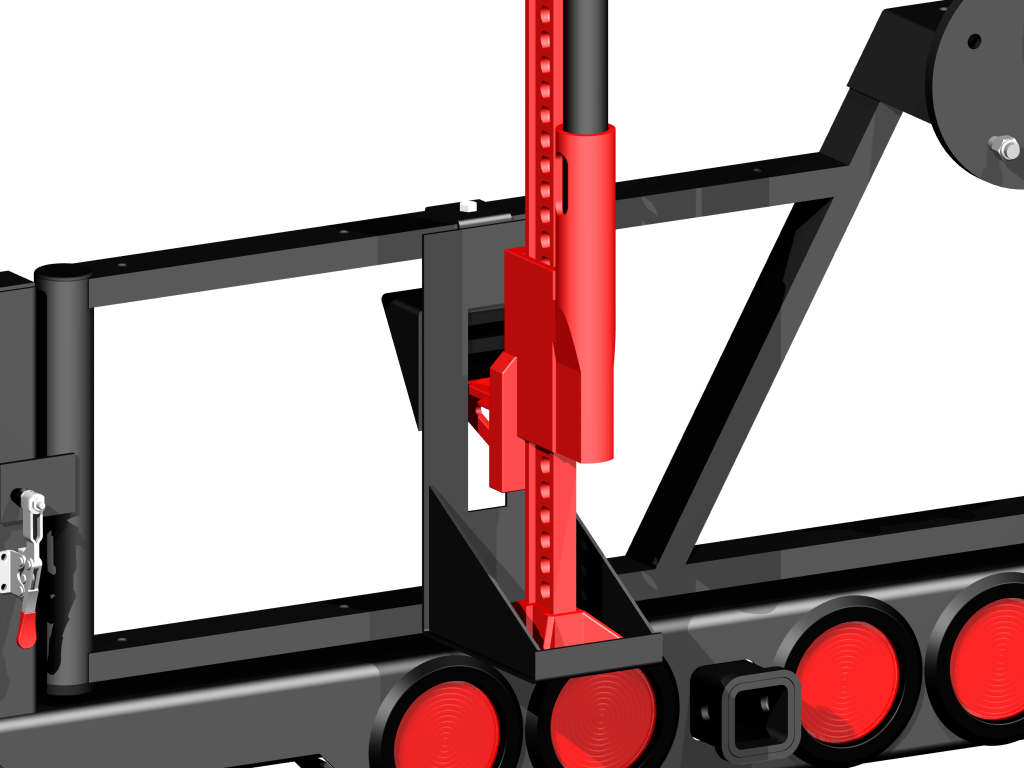

Safari Hi-Lift Jack Mount

ZNO Hi-Lift Jack Mount

Again with the bold new designs, our design team really out did themselves on this one, creating a 'rattle proof', hardware and tool free, mounting system for your Hi-Lift jack. The secret is in the high strength structural steel and exclusive urethane compression design. No longer is there a need to find your wrench to bolt and unbolt your jack. To mount your Hi-Lift Jack on our revolutionary system, simply set it in the socket and jack up against the urethane bumper. To remove it, flip the lever on the jack and lower it down as you would when

Hi Lift Jack
lowering your Zuk on the trail. Simple as that! The compression of the jack against itself eliminates your typical rattling noises that we are all so familiar with. Add a jack handle isolator to securely hold the handle in place for extra noise elimination.

The Hi-Lift Jack Mount for Suzuki Samurai's easily bolts onto your Safari Spare Tire Gate into the predrilled holes with the provided hardware.

- weight: 8.5 lbs.

ZK-0010 Safari Hi-Lift Jack Mount
*jack not included; sold separately

Powder Coat Color

*If your call in your order, we can usually get the shipping cost down based on your exact address!

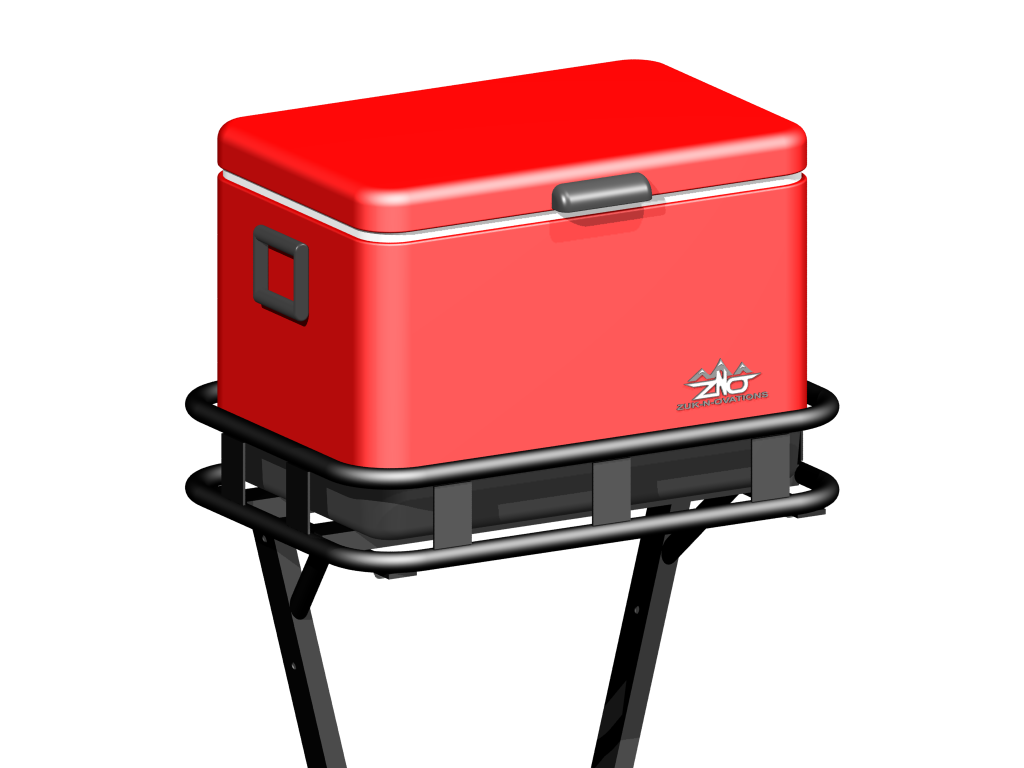

Safari Cooler Rack

ZNO Cooler Rack

Wondering how to fit your wife, two kids, and the ice chest in your Zuk? Not sure which to throw out? We have the solution to keep the whole family happy!

The epitome of 'cool', the Safari Cooler Rack allows you to hold most 50-54 qt. coolers or anything else you need to lug around that you don't want taking up space in your already small Suzuki Samurai. Being constructed of high strength steel, triangulated supports, and a fully welded frame, the Safari Cooler Rack stands out from the crowd as the most versatile and useful accessory to hit the Suzuki Samurai aftermarket.

ZNO Cooler Rack

The Safari Cooler Rack easily bolts onto your Safari Spare Tire Gate into the predrilled holes with the provided hardware.

- internal dimensions: 17" D x 25" W x 4" H
- clears a 35" tire
- load capacity: 150 lbs.
- weight: 27 lbs.

ZK-0011 Safari Cooler Rack
*currently only available for soft top Samurai's

Powder Coat Color
Soft/Hard Top

*If your call in your order, we can usually get the shipping cost down based on your exact address!

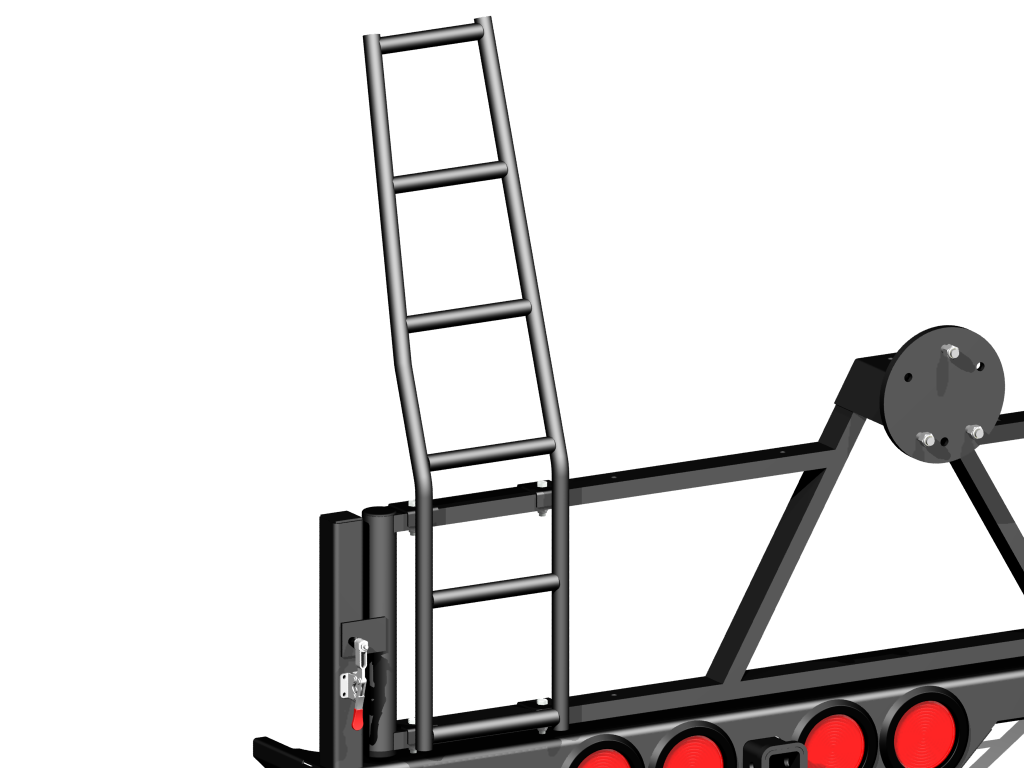

Safari Ladder

ZNO Ladder

The ONLY bumper-mounted ladder found in the Suzuki Aftermarket! The Safari Ladder is one of our most talked about accessories because it has allowed our customers to access their roof racks and get drinks out of their coolers with ease. It's constructed of 1" x 1/8" wall, high strength steel, tubing to ensure safety and rigidity. Its design seamlessly matches the body lines of your soft top Suzuki Samurai and stays within the overall width of your body and top to prevent damage due to branches and ledges.

The Safari Ladder easily bolts onto your Safari Spare Tire Gate into the predrilled holes with the provided hardware.

- load capacity: 250 lbs.
- weight: 13 lbs.

ZK-0012 - Safari Ladder
*can not be used in conjunction with Safari Gate - Jerry Can Holder

Powder Coat Color
Soft/Hard Top

*If your call in your order, we can usually get the shipping cost down based on your exact address!

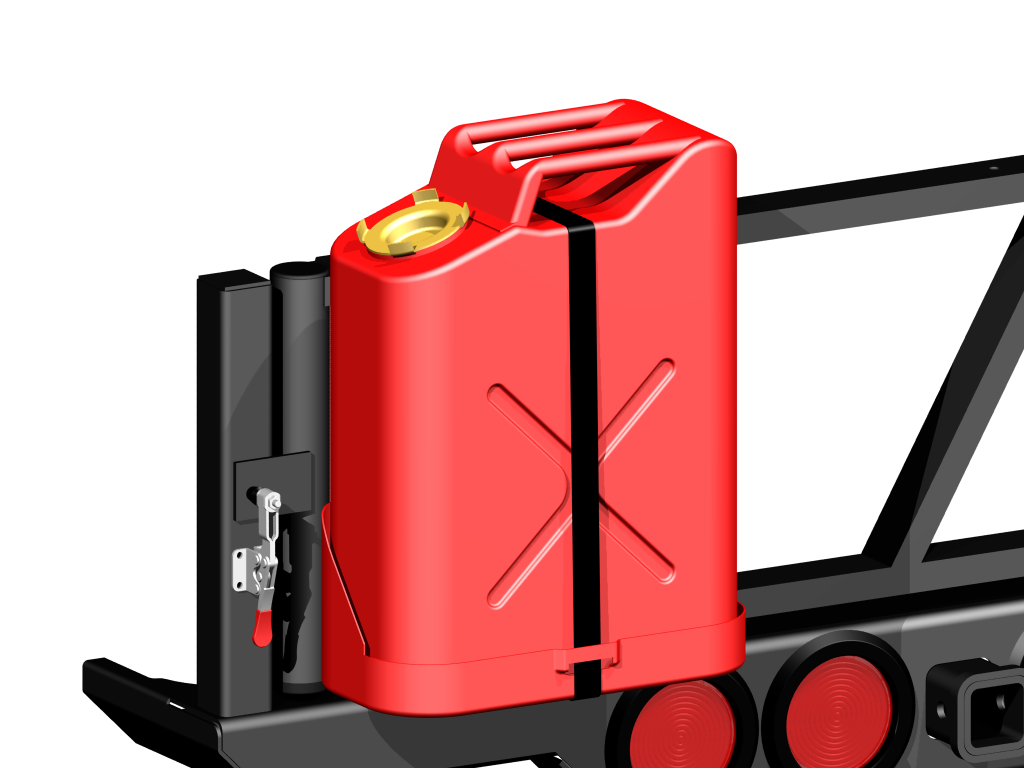

Safari Gate - Jerry Can Holder

ZNO Gate Gas Can

Easily mount 5 gallons of gas to your Suzuki Samurai with our Safari Gate Jerry Can Holder. Whether you are going on long trips or just want the added security of having the extra fuel, this gas can holder keeps your mind at ease and looks great doing it. It's designed to hold a standard Blitz 5 gallon metal gas can.

The Safari Gate Jerry Can Holder easily bolts onto your Safari Spare Tire Gate into the predrilled holes with the provided hardware and comes complete with a Blitz mounting kit to cradle and strap down your gas can.

- weight: 8 lbs.

ZK-0013 - Safari Gate Jerry Can Mount
*can not be used in conjunction with Safari Ladder
*Blitz 5 gallon metal gas can not included; sold separately

Powder Coat Color

*If your call in your order, we can usually get the shipping cost down based on your exact address!

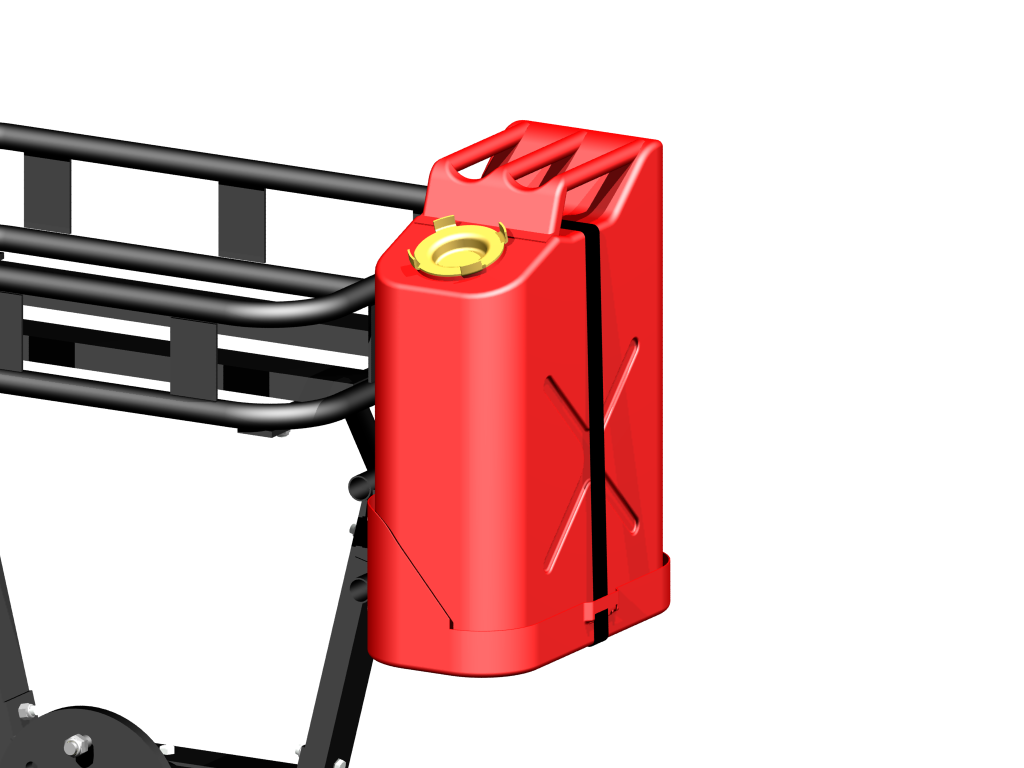

Safari Passenger Side - Jerry Can Holder

Easily mount a 5 gallons of gas to your Suzuki Samurai with our Safari Passenger Side Jerry Can Holder. It's designed to hold a standard Blitz 5 gallon metal gas can off the passenger side of your Safari Cooler Rack.

ZNO Passenger Side Jerry Can Holder

The Safari Passenger Side Jerry Can Holder easily bolts onto your Safari Cooler Rack into the predrilled holes with the provided hardware and comes complete with a Blitz mounting kit to cradle and strap down your gas can.

- weight: 6.5 lbs



ZK-0014 - Safari PS Jerry Can Mount
*Safari Cooler Rack is required
*Blitz 5 gallon metal gas can not included; sold separately

Powder Coat Color

*If your call in your order, we can usually get the shipping cost down based on your exact address!

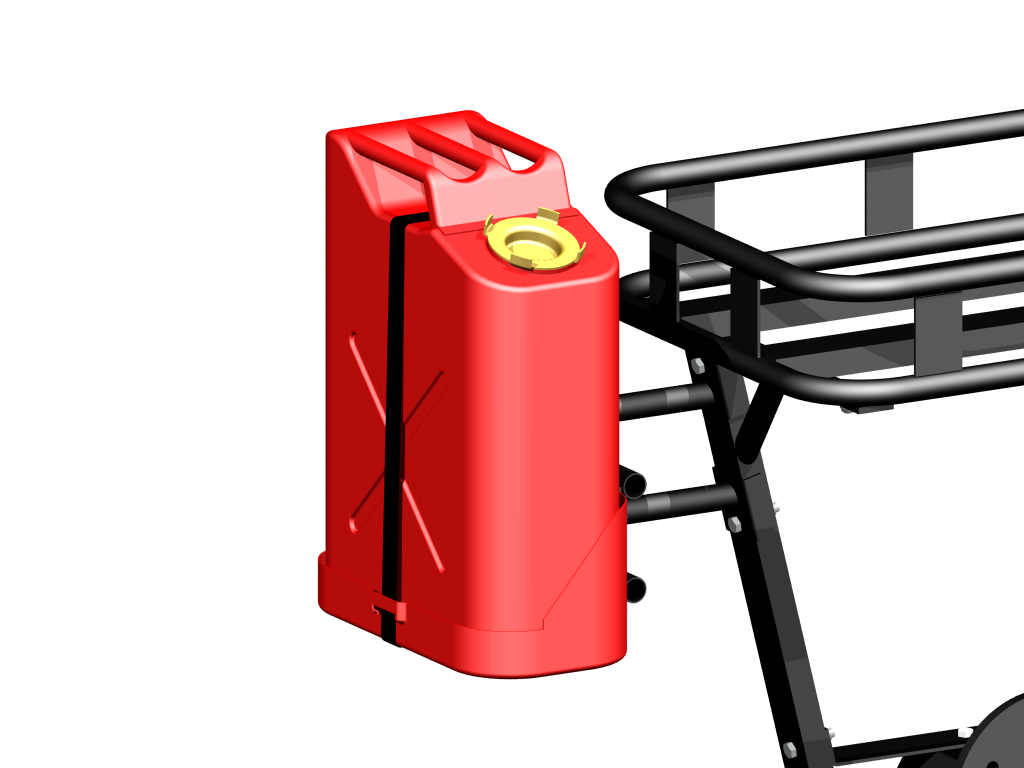

Safari Drivers Side - Jerry Can Holder

Easily mount a 5 gallons of gas to your Suzuki Samurai with our Safari Drivers Side Jerry Can Holder. It's designed to hold a standard Blitz 5 gallon metal gas can off the drivers side of your Safari Cooler Rack and Hi-Lift Jack. Perfect for those wanting to haul an extra 5 gallons of gas while keeping everything within the width of your Suzuki Samurai.

ZNO Drivers Side Jerry Can Holder

It can also be used in conjunction with the Passenger Side Jerry Can Holder to hold up to an extra 10 gallons of gas for those trying to make it the extra distance.

The Safari Drivers Side Jerry Can Holder easily bolts onto your Safari Cooler Rack into the predrilled holes with the provided hardware and comes complete with a Blitz mounting kit to cradle and strap down your gas can.

- weight: 7 lbs.

ZK-0015 - Safari DS Jerry Can Mount
*Safari Cooler Rack is required
*Blitz 5 gallon metal gas can not included; sold separately

Powder Coat Color

*If your call in your order, we can usually get the shipping cost down based on your exact address!
